Overview

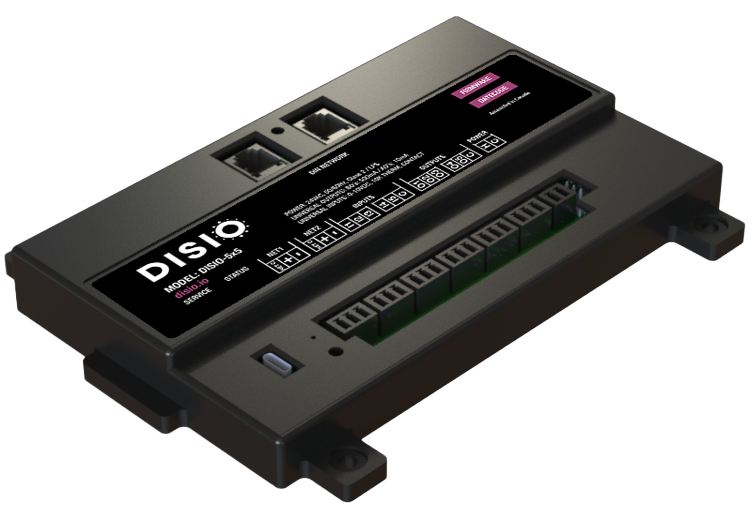

The DISIO 5×5 Controller is a programmable BACnet controller designed to make custom HVAC control simple — without the need for custom hardware.
Built with 5 universal inputs and 5 universal outputs, it provides the flexibility to support packaged rooftop units, standalone equipment, and complex sequence requirements. With an onboard BACnet MS/TP port, the DISIO 5×5 can read from and control other BACnet equipment using standard BACnet commands.
The controller comes preloaded with standard DISIO HVAC sequences and can be customized to match project-specific applications. Setup is fast and straightforward using the built-in USB-C port and DISIO Setup.
Features
- Handles complex sequences
- MS/TP BACnet port for reading and controlling other equipment
- Universal inputs [5] – Contact closure, 0-10V, 10k thermistor
- Universal outputs [5} – 0-10VDC, 24VAC binary
- LED indicators for outputs, BACnet network and health
- RJ-12 DIN network for future expansion to other DISIO 5×5 controllers
